AUTO. DIG. REFRACT. RFM330M 1.32-1.58X0.0001R.I. 100, 230V

AUTO. DIG. REFRACT. RFM330M 1.32-1.58X0.0001R.I. 100, 230V

Product Code: RE280-55

£12,010.80

inc. VAT

£10,009.00

ex. VAT

Download Product Information

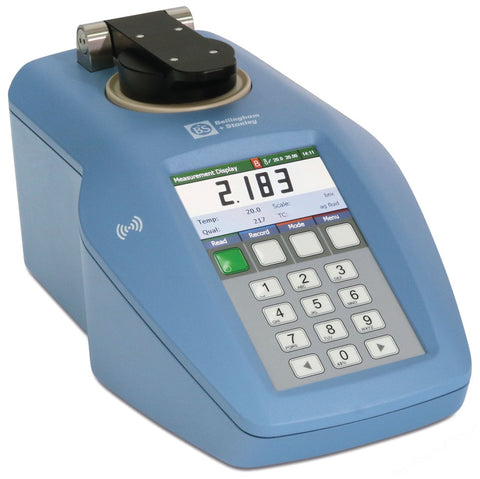

Bellingham and Stanley Models RFM330-M and RFM340-M refractometers, from Xylem, are sophisticated instruments for installation in demanding factory environments as well as for use as primary quality control tools.

  • Solid state measuring system
  • Shallow, easy-clean prism dish
  • Choice of Refractive Index, % Sugar solids or up to 100 ranges from pre- programmed standard scales: Zeiss, Oechsle, Butyro, Fructose or custom
  • Built-in peltier temperature control
  • 700 reading memory
  • Extended sugar compensation, acid correction, offset, scaling and drift run facilities
  • Full colour, high resolution readout
  • RS232, LAN and USB interface outputs

Model RFM330-M features:

 Model

 RFM330+
 Scales
 R.I.
 % Sugar (°Brix)
 1.32 to 1.58
 0 to 100
 Resolution
 (accuracy)
 R.I.
 % Sugar (°Brix)
 0.0001 (±0.0001)
 0.1 (±0.04)
 Other scales

 100 available from pre-programmed standard scales: Zeiss, Oechsle, Butyro, Fructose, or user-defined
 Automatic temperature
 compensation
 Sugar (˚Brix),

 AG fluids,
 User-defined units
 ICUMSA 5 to 70˚C

Simple coefficient (units/˚C) or polynomial function
 Temperature stability
 checks

 Selectable by method
 Working temperature
 range
 °C
 Ambient -10 to +70 (peltier-controlled),
 accuracy ±0.05
 Reading update

 4 seconds (minimum)
 Prism

 Artificial sapphire
 Sample illumination

 LED and filter at 589nm
 Overall W x D x H
 mm
 187 x 337 x 211
 Weight
 kg
 5.4

























Supplied with instructions and power adapter for 100-240V 50/60Hz single phase supplies.
