FERMENTER STARTER KIT FERMAC 200 10L VESSEL 230V 50HZ A.C.

FERMENTER STARTER KIT FERMAC 200 10L VESSEL 230V 50HZ A.C.

Product Code: FA400-30

£9,636.00

inc. VAT

£8,030.00

ex. VAT

Download Product Information

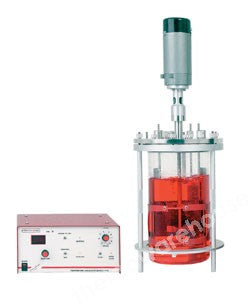

Low-cost, modular, bacteriological fermenter equally suited to simple or more specialist applications in both educational or industrial environments.

  • Vessel size: 10 litres
  • Powerful, direct drive agitation system
  • Pt100 temperature sensor for accurate temperature monitoring by separate controller
  • Wrap-around, silicone heater blanket operates at low-voltage and is washable

Vessel

Comprises 10 litre borosilicate glass vessel with rigid frame. The 316L stainless steel top plate features 7 x 12mm and 5 x 6.3mm accessory ports for maximum versatility. O-ring seals are mounted on the sterile side of ports to assure sterility and avoid cross contamination. Removable twin baffle and cooling coil ensure cleaning of the vessel is quick and easy.

Agitation and temperature module

Agitation is provided by a vessel-mounted, powerful d.c. direct drive motor which is locked to the stirrer paddle so that it cannot be removed accidentally. Both agitation and temperature are controlled by the same module, which uses an industrial-grade Pt100 sensor for stable measurement with temperature displayed on an LED readout. Cooling is on-demand, operated by a valve mounted on a separate service plate, thus separating water and electrics.

Working volume       litres    10
Total volume         litres 12.5
Ports 6.3mm dia.
  12mm dia. 7
Agitation          Direct drive with powerful 60 watt d.c. motor
Speed range rpm 50 to 1100
Display range     oC 0 to 100
Operating range  oC from 5 above cooling water to 50
Heater  Watts 250
Module W x D x H
Temperature/agitator      mm 265 x 240 x 127

















Comprising 10 litre vessel, Fermac 230 module with agitation and temperature only. Supplied with support frame, top plate, heater blanket, Pt100 sensor, stainless steel condenser, cooling coil, air sparge tube, port blanking plugs, 3-way inlet, service plate, temp./agitator controller with drive motor and 2 x impellors, supply leads and instruction manual. For 230V 50Hz single phase supplies.
