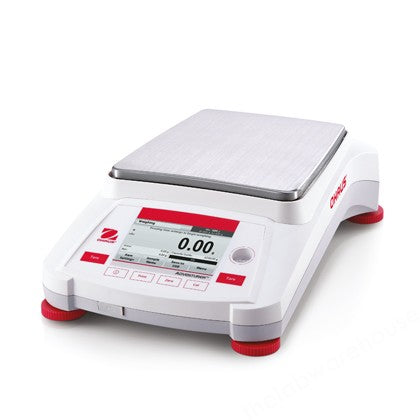

ELECTRONIC BALANCE OHAUS AX223/E 220 X 0.001G 100-240V A.C.

ELECTRONIC BALANCE OHAUS AX223/E 220 X 0.001G 100-240V A.C.

Product Code: BB576-11

Manufacturers Code: 30127961

£1,866.00

inc. VAT

£1,555.00

ex. VAT

Download Product Information

Ohaus® Adventurer® Series are advanced, general purpose balances combining inventive features with straightforward operation for laboratory, industrial and educational requirements.

  • Colour touchscreen, graphical display with wide viewing angle showing weight and application information
  • Additional six fixed button controls initiate power on/off, print, zeroing and calibration with the tare function opened by keys on either side of the control panel
  • User selectable units g, mg, msg, mo, N, oz, dwt, Ba, ct, gn, lb, tl, tc, tla, troy oz. and custom
  • Application modes include: parts counting, % weighing, check weighing, dynamic weighing, totalisation and display hold (for situations where the display might be momentarily obscured)
  • Full range automatic tare function
  • RS232, USB device and host ports with GLP/GMP data output and cloning feature which allows user and application settings to be saved to an accessory USB flash drive and used to configure another Adventurer® balance
  • 0.1/1mg readability models have a draught shield with two-piece, wide opening, side doors and sliding top panel for easy access and requiring minimal space on the benchtop
  • Choice of AutoCal™ internal calibration with daily routine or external calibration models
  • Weigh-below hook for density/specific gravity determination





 Model

 AX223/E
 Calibration

 external*
 Capacity
 g
 220
 Readability
 g
 0.001
 Repeatability std
 ±g
 0.001
 Linearity
 ±g
 0.002
 Pan diameter  mm  130
 Stabilisation time
 secs.
 <2
 Overall   H
                W
                D
 mm
 mm
 mm
 354
 340
 230
 Net weight  kg  5.8























* Calibration weight not supplied - see BD912.





With touchscreen display and six button operation, bidirectional RS232 and USB interfaces, weigh-below facility, stability error and “below minimum weight” indicators, adjustable feet, levelling bubble and a.c. adapter for 100-240V 50/60Hz single phase supplies.
