GLOVEBOX 290 LITRES ACRYLIC PANEL PE BASE

GLOVEBOX 290 LITRES ACRYLIC PANEL PE BASE

Product Code: FZ590-60

£6,419.23

inc. VAT

£5,349.36

ex. VAT

Download Product Information

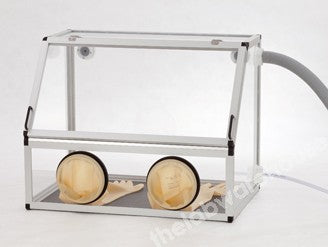

Simple gloveboxes for use at atmospheric pressure. Comprises rigid, aluminium framewith acrylic panel sides, roof, angled, hinged lid and polyethylene floor panel. The front panel incorporates two glove ports with natural rubber, size 9 gloves. The working chamber includes two inlet/outlet ports with hose connectors for gassing and aeration and two further cable ports to allow use of instruments inside the glovebox.

  • Lightweight, robust construction is easy to move around
  • Excellent, all-round visibility
  • Airtight construction
  • Available with, or without, side transfer (intermediate) chamber



 Capacity
 litres
 290
 Usable interior dimensions,
 W x D x H
 mm
 850 x 540 x 650
 Overall W x D x H*
 mm
 890 x 600 x 700
 Operating temperature range
 ºC
 -20 to +70
 Maximum loading
 kg
 40
 Glove opening diameter
 mm
 190
 Distance between gloves
 mm
 390
 Lid opening, W x D
 mm
 850 x 425
Weight
 kg
 14





















*Tubing attachment coupling requires extra 150mm when in use.





Supplied with 2 x size 9 rubber gloves, 2 x 5m lengths of PVC (gassing) and PE (aeration) tubing and rubber feet.
