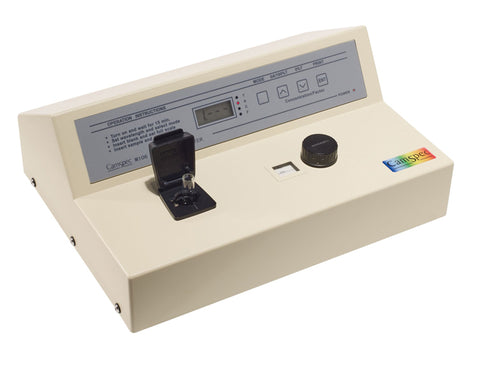

Simple, robust, single beam spectrophotometer offering high performance at a competitive price level.
- Digital setting within the visible light range
- Excellent instrument stability and accuracy
- Easy operation with dial filter adjustment and membrane keypad setting, ideal for teaching applications
- Push-button, auto-zero setting
Supplied with single 10mm diameter test tube holder, 10mm square cuvette adapter, dust cover, user manual, mains lead and box of 12 x 10mm diameter test tubes. For 115V, 230V 50/60Hz single phase supplies.
| Model | M106 | |
| Wavelength range | nm | 330 to 1000 |
| Bandpass | nm | 8 |
| Wavelength accuracy (repeatability) | nm | ±2 (±1 digit) |
| Straylight (at 340nm) | %T | <0.3 |
| Operating modes | Absorbance, A | 0 to 2 |
| Transmission, %T | 0 to 125 | |
| Concentration, C | 0 to 1999 | |
| Factor, F | 0 to 1999 | |
| Photometric accuracy | %A | ±1 (0 to 2A) |
| Sample capability | 10mm square cuvettes or 10, 20, 25mm dia. test tubes | |
| Light source | Tungsten-halogen lamp | |
| Outputs | RS232 | |
| Dimensions H x W x D | mm | 185 x 408 x 308 |
| Weight | kg | 6 |
