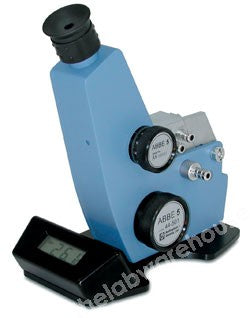

Bellingham and Stanley Model 5 Abbe refractometer, from Xylem, is a budget-level refractometer, ideal for wide ranging refractive index (R.I.) measurement, or where sample throughput is relatively low. It is particularly suited to educational demonstrations.
- R.I. and Brix scales indicated
- Uses ambient white light as a light source
- Digital sample temperature readout
- Water-jacketed prism block with inlet and outlet ports
Model | Abbe 5 | |
Scales | R.I. Brix | 1.30 to 1.70 0 to 95° |
Resolution | R.I. Brix | 0.00005 0.25° |
Temperature display x resolution | ºC | +5 to +70 x 0.1 |
Overall W x D x H | mm | 120 x 220 x 310 |
Weight | kg | 2.6 |
Supplied with glass calibration plate, contact liquid, instruction manual, battery and rigid carrying case. Requires a source of white light (natural or lamp) for operation.
