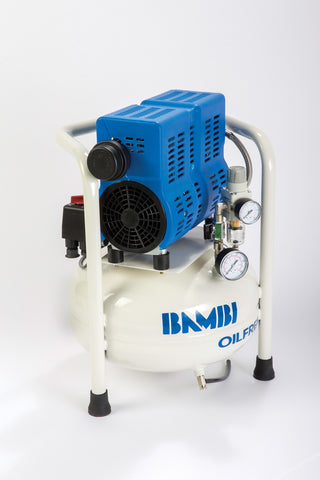

Bambi, oil-free, air generators and compressors are innovative, compact design, quiet running pumps providing oil-free air for scientific instruments and numerous other applications requiring critical air quality, including gas generation, autosampling and laser cooling.
General specifications:
- 100% oil-free output
-
Compact design allowing use where space is limited
-
Fitted with outlet pressure regulator, 10µm air line filter and condensate drain plug
Performance data:
Model | PT15 | |
Power | kW | 0.55 |
Maximum flow rate (at 8 bar) (at atmospheric pressure) | litres per minute litres per minute | 37 110 |
Noise output | db(A) | 54 |
Air tank capacity | litres | 15 |
Outlet nozzle | ¼" BSP, female thread | |
Overall height width depth | mm mm mm | 530 370 370 |
Weight | kg | 23 |
Supplied with 10µm air line filter, outlet pressure regulator and gauge. For 220-240V 50Hz supplies.
