AUTO. PELLET PRESS CARVER 3887CE-SD 220V 50/60HZ A.C.

Product Code: PW190-60

£25,128.00

inc. VAT

£20,940.00

ex. VAT

Download Product Information

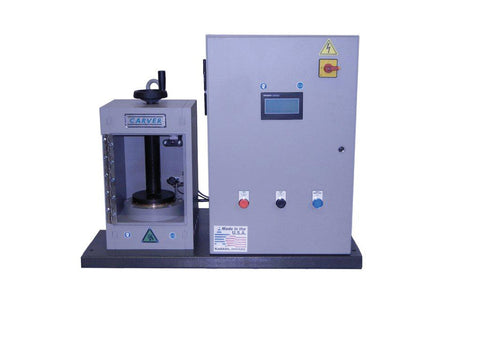

Carver Model 3887CE-SD is a two-column, automatic, hydraulic laboratory press primarily for KBr pellet pressing.

  • Maximum applied load 25 US tons.
  • Touchscreen interface controller with display for pressure, speed, dwell time setting and press status
  • Ten recipe storage of pressure and time settings
  • Integral 0.01seconds to 99.9 hours timer
  • Automatic platen opening on cycle completion
  • Adjustable end of cycle alarm
  • Units of measurement setting for kg, lbs or tons
  • Built-in safety enclosure with transparent door

With 125mm diameter, circular unheated  plates. Supplied complete with 13mm die. Ram stroke: 25mm; daylight opening: 38 to 184mm. Overall 605 x 250 x 600mm W x D x H. Weight, net: 120kg. For 220V 50/60Hz single phase supplies.
