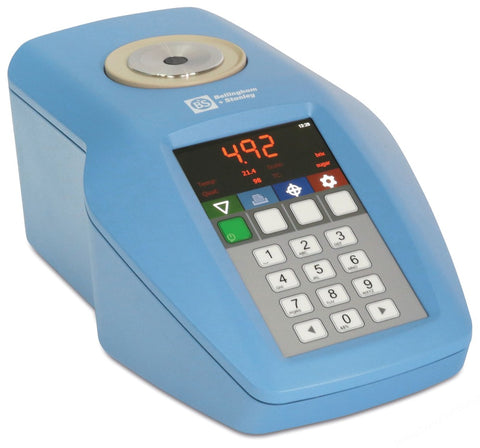

Bellingham and Stanley RFM700-M series are low cost, fully automatic, digital refractometers designed for quality control in the food and beverage industries, but also useful in a variety of research and monitoring applications.
- Choice of Brix ranges: 0 to 50% x 0.1% sugar, 0 to 100% x 0.1% sugar or 0 to 100% x 0.01% sugar
- Easy to use, four button operation
- Bright LED display is clearly visible in all ambient light conditions
- Moisture-resistant, sealed casing
- RS232 interface output
- External, low voltage power supply
Model RFM732-M features:
Model | RFM732 | |
Scales | % Sugar (°Brix) | 0 to 100 |
Resolution (accuracy) | % Sugar (°Brix) | 0.1 (±0.1) |
Other scales | User defined – RI, Oechsle, Probable Alcohol (A.P.), Báume, Babo, Sodium Chloride, HFCS, Butyro, FSII² etc. or custom scales, all loaded by PC software | |
Automatic temperature compensation | ICUMSA (to +20°C), AG, None or user defined | |
Temperature stability checks | Delay time (programmable) | |
Working temperature range | °C | +5 to +40, accuracy ±0.05 |
Reading update | 4.5 seconds (minimum) | |
Prism | Artificial sapphire | |
Sample illumination | LED and filter at 589nm | |
Interface | Bi-directional RS232 | |
Overall W x D x H | mm | 187 x 337 x 211 |
Weight | kg | 3 |
Supplied with instructions and external power adapter for 100-240V 50/60Hz single phase supplies.
