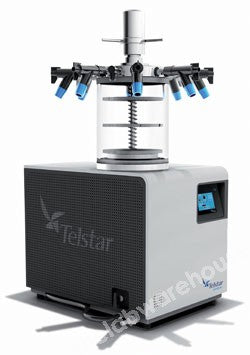

Compact, benchtop, laboratory scale freeze dryers for research applications.
- LyoQuest Plus: with automatic vacuum control for faster freeze drying with reproducible results
- Total condenser ice capacity of 5kg
- Condenser ice rates up to 5kg in 24 hours
- Touchscreen programming with large backlit LCD readout
- Auto start-up and shutdown routines programmable
- Automatic defrosting function
- Stainless steel AISI 316L condenser
- Side mounted vacuum and drain connections with valves
| Model | Lyoquest -55 Plus | |
| Ulti. condenser temp.* approx. | oC | -55 |
| Condenser capacity | kg/24 hr | 5 |
| total kg | 5 | |
| No. of compressors | 1 | |
| Overall W x D x H | mm | 425 x 575 x 480 (without manifold) |
| Weight | kg | 65 |
| Supply requirements† | 230V 50Hz single phase supplies | |
| Rating | kW | 1.1 |
*At ambient temperature up to +21oC.
†110V or 230V 60Hz models are available - details on request.
Supplied without manifold which is required for operation. For 230V 50Hz single phase supplies.
