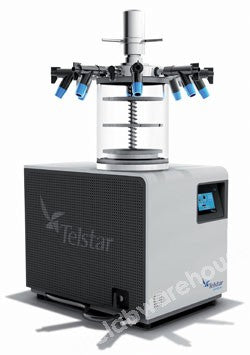

BENCHTOP FREEZE DRYER LYOQUEST-85 PLUS ECO 230V 50HZ A.C.

BENCHTOP FREEZE DRYER LYOQUEST-85 PLUS ECO 230V 50HZ A.C.

Product Code: FS505-40

£17,982.00

inc. VAT

£14,985.00

ex. VAT

Download Product Information

Compact, benchtop, laboratory scale freeze dryers for research applications.

  • LyoQuest Plus Eco: with automatic vacuum control for faster freeze drying with reproducible results and additionally supplied with two-stage, 6m3/h vacuum pump fitted with exhaust filter and oil recovery device
  • Total condenser ice capacity of 8kg
  • Condenser ice rates up to 6kg in 24 hours
  • Touchscreen programming with large backlit LCD readout
  • Auto start-up and shutdown routines programmable
  • Automatic defrosting function
  • Stainless steel AISI 316L condenser
  • Side mounted vacuum and drain connections with valves
 Model      Lyoquest -85 Plus Eco
 Ulti. condenser temp.* approx.      oC    -85
 Condenser capacity         kg/24 hr    6
  total kg 8
 No. of compressors         2
 Overall W x D x H mm 425 x 575 x 480 (without manifold)
 Weight  kg 70
 Supply requirements   230V 50Hz single phase supplies
 Rating kW 1.4













 *At ambient temperature up to +21oC.

110V or 230V 60Hz models are available - details on request.

Supplied without manifold which is required for operation. For 230V 50Hz single phase supplies.
