Quickfit® jointed glassware from Scilabware is a comprehensive range of laboratory articles with interconnecting joints, enabling simple to complex chemistry set-ups to be easily constructed and allowing a variety of analytical, development or educational tasks to be undertaken. Precision-engineered, ground glass joints with a standard taper and smooth surface ensure complete interchangeability of elements with the same joint size and the highest standards of leak-tightness.
Quickfit® is manufactured in clear, Pyrex® borosilicate glass, with a low coefficient of expansion, excellent chemical and heat resistance. It conforms to the following standards:
ISO 3585, DIN 12217 - Type 3.3 borosilicate glass
ASTM E-438 Type 1 - Class A borosilicate glass
US Pharmacopoeia - Type 1 borosilicate glass
European Pharmacopoeia - Type 1 glass
Further technical details are available on request.
Joint sizes are designated XX/XX, the prefix (XX/-) being the small diameter of the cone or socket and the suffix (-/XX) being the cone or socket height, i.e. size 24/29 has a 24mm diameter at its smallest point and the overall cone or socket height is 29mm.

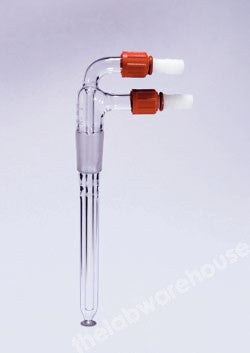

A general purpose cold finger condenser which can also be used as a dephlegmator to control reflux ratios in a rough fractional distillation. Used in conjunction with a QMA1: or QMA2: multiple adapter, this cold finger forms a simple type of stillhead to regulate reflux by water or air flow. Suitable for fractionations not requiring strict control of the reflux ratio. With screwthread outlets and supplied with polypropylene safety tubing connectors for 9mm bore flexible tubing.
