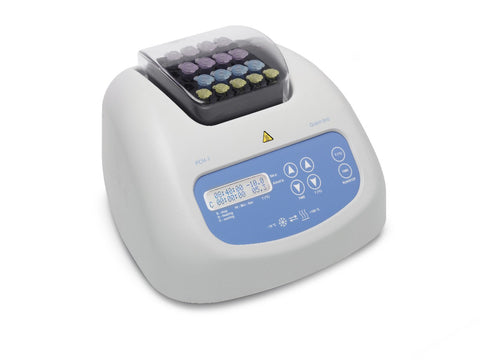

Grant bio PCH-series blocks are suitable for cooling and heating applications including nick translation, ligation reactions, restriction digests, tube hybridisation, enzyme reactions and deactivations.
General specifications:
- Range -10 to +100°C
- 0 to 96 hours x 1 minute timer with audible alarm at end of timed period
PCH-2 features:
- 20 x 1.5ml microtube block
| Model | PCH2 | |
| Temperature range x resolution | ºC | -10 to 100 x 0.1 |
| Stability | ±ºC | 0.2 |
| Uniformity (at 10ºC) | ±ºC | 0.5 |
| Heat up time, ambient to 100ºC | minutes | <10 |
| Cool down time, 100ºC to ambient ambient to -10ºC | minutes minutes | <12 <11 |
| Overall W x D x H | mm | 225 x 195 x 161 |
| Weight | kg | 3.5 |
With insulating cover and fitted with block as indicated. For 220-240V 50/60Hz single phase supplies.
