Product Code: MG055-35

Manufacturers Code: IA9300


inc. VAT


ex. VAT

Download Product Information

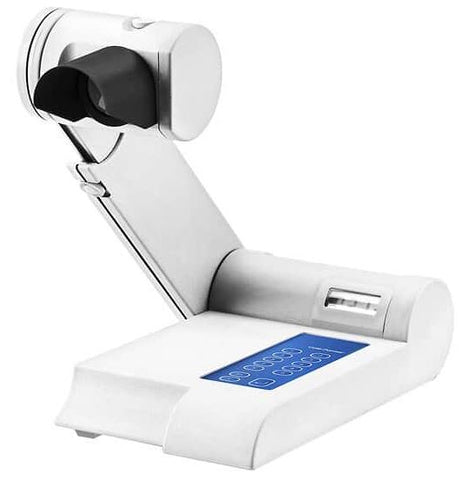

The IA9300 operates from a low voltage source for safety and convenience. The viewing arm is adjustable in length and angle to ensure that the samples are easily seen and also to prevent operator fatigue. When not in use the viewing head folds flat for easy storage. A x8 magnifier with wide viewing angle and high intensity illumination allows good visibility of the three sample capillaries. The oven used to heat the samples is microprocessor controlled to provide the fastest warm up and the most accurate temperature control. Capillary tubes up to 2mm diameter can be used and the tube guide is removable for cleaning and insertion of the cold finger.

  • Maximum temperature 400°C
  • Adjustable viewing head
  • Low voltage operation
  • 40mm x8 magnification viewing lens with adjustable focus
  • Membrane keypad
  • Melt temperature storage
  • Fast warm-up
  • White LED-illuminated sample chamber
  • Optional printer
  • Date/time facility
  • RS232-C and USB ports

Model IA9300

Provides similar features to the IA9200 but allows in addition, two discreet melt temperatures to be recorded for each capillary tube. This feature enables, for example, the clear recording of a “start of melt” and “full meniscus” temperature for each of the three samples under test. A tube select key toggles between the sample tubes and LED indicators on a head up display behind the viewing  lens show which tube is selected.  The batch memory allows storage of up to 500 sets of results and conditions.

 Model      IA9300
 Range             Ambient to 400oC
 Resolution           0.1oC
 Accuracy at          20oC     ±0.5oC/±1 digit
  350oC     ±1oC/±1 digit
 Display         12mm high 4 digit liquid crystal
 Capillary tubes   Capacity 3 up to 2mm diameter
 Memory   6 temperatures. Up to 500 batch
 Outputs   RS232-C and printer sockets, USB to accessory flash drive
 Power input 230V 50/60Hz single phase
  output     15V
 Overall width x depth, mm       200 x 355
  height extended, mm     450
  closed, mm 80
 Weight kg 2.5












Maximum temperature 400°C. With 13 position membrane keypad, adjustable 0.2 to 10°C/min ramp rate facility, temperature and batch memory, USB flash drive output, printer socket and RS232 interface. Includes facility to record 2 melt temperatures for each capillary tube. Supplied with power supply for 230V 50/60Hz single phase input and storage capacity for 100 capillary tubes.
