DIGITAL MICROSCOPE CAMERA CMOS 5MP CMEX5 FOR USB 2.0

DIGITAL MICROSCOPE CAMERA CMOS 5MP CMEX5 FOR USB 2.0

Product Code: MJ810-40

£357.60

inc. VAT

£298.00

ex. VAT

Download Product Information

High resolution, digital camera for use with most types of compound and stereomicroscopes.

  • 5.0 Mpixel resolution
  • CMOS 1/2.5” sensor, with 2592 x 1944 pixels
  • 10-bit analogue:digital converter, with 24-bit colour depth (True colour)
  • Low signal:noise ratio (42dB maximum)
  • USB 2.0 interface
  • Compatible with Windows® computers running Windows® XP to Windows® 8 operating software

Additional specifications:

 Scan mode

 Progressive, rolling shutter
 Pixel size
 μm
 2.2 x 2.2
 Filter

 RGB
 Maximum frames
 per second

 Up to 5 at 2592 x 1944 pixels
 Up to 21 at 1280 x 960 pixels
 Up to 25 at 1024 x 768 pixels
 Up to 38 at 640 x 480 pixels
 Sensitivity

  >1.3V/lux-second at 550nm. Suitable for Brightfield,
 Darkfield, Phase Contrast or Epifluorescence
 Exposure

 Automatic or manual from 1msec. to 800msec.
 White balance

 Automatic or manual
 Overall W x D x H
 mm
130 x 100 x 60
 Weight,
 kg
 0.5
 Power
 W
 Self-powered via PC USB output

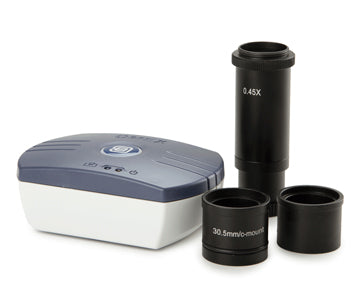

Fits a standard 23.2mm diameter trinocular or eyepiece tube. Supplied with 0.5X objective with C-mount, USB2.0 cable, 30mm and 30.5mm diameter adapters for stereomicroscopes, stage calibration slide graduated 1mm x 0.01mm and software CD.
