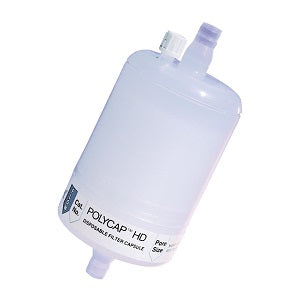

Mounted in a rugged polypropylene housing.
|Filtration area, cm2||Housing volume, ml||Tubing connection, mm||Dimensions dia. x length, mm|
|Polycap 75 HD||650||125||12||66 x 96|
- Polypropylene monofilament depth filter
- Maximum operating pressures 4.1 bar forward, 3.0 bar reverse
- Capsules may be used in either direction
- Low hold-up volume with air purge
- Operating temperature 60°C maximum
Ideal for use as prefilters. The capsule and filtration media are both polypropylene and are thus resistant to chemical attack.
