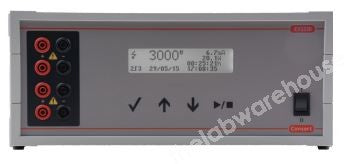

ELECTROPHORESIS POWER SUPPLY EV3330 210-250V 50/60HZ A.C.

ELECTROPHORESIS POWER SUPPLY EV3330 210-250V 50/60HZ A.C.

Product Code: EL345-20

£2,226.00

inc. VAT

£1,855.00

ex. VAT

Download Product Information

Easy-to-use power supply for routine electrophoresis applications.

  • Fully programmable, up to 9 programmes each with 9 parameter sets can be stored in non-volatile memory
  • Integral timer with alarm at end of run
  • Automatic run continuation when power restored
  • Twin line, alphanumeric LCD readout, 2 x 16 characters
  • Datalogging facility holds up to 3600 values (voltage, current and power, time or volthours) including programme number and step
  • RS232 control port allows remote control via users’

Safety features

  • Automatic disconnection of a.c. power from the high voltage transformer if a ground leakage of greater than 500µA is detected
  • Fully protected against any overload condition including accidental short circuit of the output
  • High voltage increases smoothly when one of the pre-set limits is reached, no sudden voltage surge occurs at the outputs
  • Galvanic RS232 input/output insulation prevents ground loop interferences when connected to a computer
Model      EV3330
  V 3000
  mA 300
  W 300
Timer                    0 to 99 hours 59 minutes, 0 to 99.9 KVh
Programmes           9 sets of 9 programmes
Outputs   4 in parallel, 2mm sockets
No load detection   On/off, programmable
Overall W x D x H         mm  310 x 260 x 150
Weight kg 10















Constant voltage, current and power. For 210-250V 50/60Hz single phase supplies. Supplied with manual, mains lead and four pairs of 2/4mm adapters.
