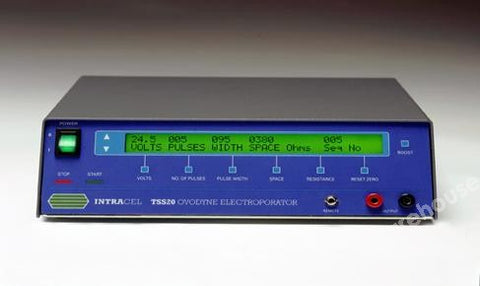

A square wave pulse generator for bench top use, capable of single or multi- pulse operation at voltages suitable for in ovo electroporation. The use of the chick embryo as a model for gene transfer experiments has grown rapidly in recent years. The TSS20 OVODYNE is a highly-refined, microprocessor-based instrument providing flexibility and convenience in operation.
General specifications:
- Accurate voltage setting
- Resistance measuring facility ensures that an appropriate voltage is selected for electroporation in the presence of conductive buffers, or that electrode spacing is adjusted to avoid current limiting conditions
- Clean, square wave pulses produced
- Safe and easy-to-use
- Remote hand- or footswitch operation
- Accessory EP21 current amplifier extends the current range of the TSS20 up to 1000mA, allowing electroporation of other embryo cell types and multiple embryos in vitro
- Silver, tungsten, or platinum-tipped electrodes available
| Pulse voltage | V | 0 to 99.9 x 0.1 |
| Pulse type | Square wave | |
| Programmable pulses | 1 to 999 x 1 | |
| Pulse width | milliseconds | 1 to 999 x 1 |
| Resistance | ohms (Ω) | 0 to 9998 x 1 |
| Sequences | 0 to 999 | |
| Overall W x D x H | mm | 230 x 200 x 85 |
| Weight | kg | 2.5 |
For 230V 50/60Hz single phase supplies. Supplied without probes or probe holders which are required for operation.
