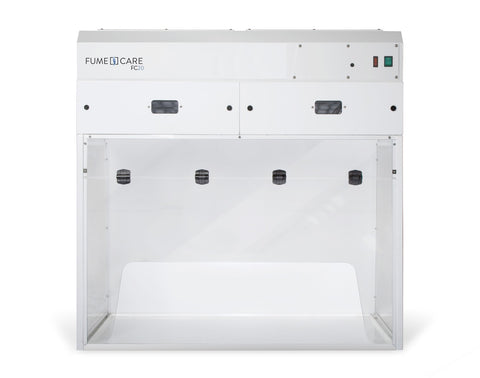

Ductless fume cupboard accommodating accessory replaceable, activated carbon filters providing filtration, absorption or neutralisation of airborne contaminants. Accessory impregnated carbon filters are available for use in a wide range of extraction applications.
- Greater than 0.5 metres per second face velocity
- Hinged front panel
- All filter exchange mechanisms are on the clean side of the filter and switches and electrical components are totally isolated from the dirty airflow and contamination
- Built-in, 2 x 15W fluorescent illumination
- Quiet (less than 58dBa)
- Low airflow alarm if face velocity falls below 0.3 metres per second
- Electrostatic pre-filter
Construction
White epoxy coated mild steel frame, rear panel and head unit with clear acrylic side panels. The clear acrylic front panel is hinged and self-locking. A removable front panel to the head unit allows easy access to the filters and clamping mechanisms. Controls are situated in the head unit front panel for easy operation.
Specification
| Model | FC-20 | |
| Dimensions, mm | width | 1250 |
| depth | 700 | |
| height * | 1210 | |
| Filters† | 2 | |
| Weight | kg | 70 |
| Service required | 230V 50Hz a.c. single phase supply |
*Internal height: 800mm.
† Indicates the number of main (and safety) exhaust filters required.
Supplied with low airflow alarm, electrostatic pre-filter(s) and main filter i.d. window. For 230V 50Hz single phase supplies. Requires, but is not supplied with, main exhaust filters.
Commissioning: A commissioning service for the filtration fume cupboards is available within the UK at additional cost — details on request.
