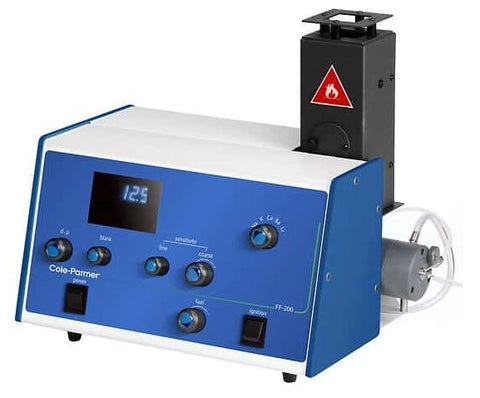

FLAME PHOTOMETER FF-200D-I 190-250V 50/60HZ A.C.

FLAME PHOTOMETER FF-200D-I 190-250V 50/60HZ A.C.

Product Code: FH200-15

Manufacturers Code: 83055-05 (formerly Jenway 500 701)


inc. VAT


ex. VAT

Download Product Information

Single channel emission flame photometer for routine determination of Na, K, Ca, Li and Ba.

  • Wide range of clinical, industrial and teaching applications including examination of:-
    • pharmaceutical and biochemical samples
    • plant and animal tissues
    • minerals, cements and ceramics
    • oils and greases
    • biological and clinical fluids
  • Digital readout
  • Switchable decimal point
  • Narrow band filters on rotating discs
  • Electronic ignition of flame
  • Electronic flame failure protection
  • Automatic regulation of air supply
  • Simple maintenance and cleaning
  • Recorder output
 Model  FF-200D-I

 Ranges     ppm    0 to 199.9
 Detection limts, ppm         Na   0.2
  K 0.2
  Li 0.25
  Ca  15
  Ba 30
 Reproducibility   1% CV for consecutive samples using 10ppm Na, set to read 50.0
 Linearity           Better than 2% when concentration of 3ppm, Na and K and 5ppm Li are set to read 100
 Specificity   Interference from Na, K, Li equal in concentration to test element will be lesss than 0.5%
 Recorder output   Nominal 1V for a reading of 100.0
 Dimensions mm 420 x 360 x 300
 Weight kg 8
 Services required
 Electrical   190-250V 50/60Hz a.c single phase
 Air   Moisture and oil free 6 litres/minute at 1kg/cm2
 Gas   Propane, butane or natural gas (specify correct regulator when ordering)













Supplied with Na, K, Li, Ba and Ca filters, fuel and air connectors, instructions and service manual. Requires but does not include a gas regulator and an air compressor of the correct type. For 190-250V 50/60Hz a.c. single phase supplies.

It is recommended that accessory filters, air compressor and gas regulator are ordered with the flame photometer.
