HYDROGEN GENERATOR PEAK PRECISION 300 110V, 230V 50HZ A.C.

HYDROGEN GENERATOR PEAK PRECISION 300 110V, 230V 50HZ A.C.

Product Code: GG150-48

£7,332.00

inc. VAT

£6,110.00

ex. VAT

Download Product Information

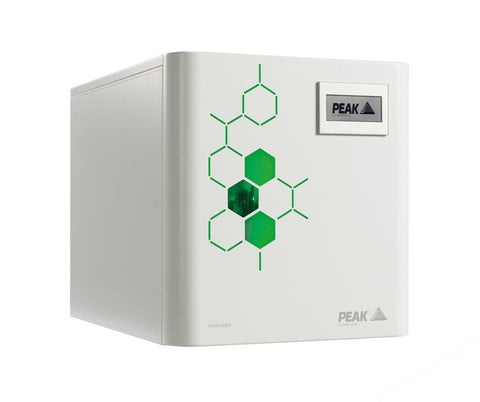

Precision series hydrogen generators from Peak Scientific produce a continuous supply of ultra high purity gas to replace cylinder gas in gas chromatography and many other laboratory applications.

  • Output suitable for carrier gas and flame gas, when operating gas chromatographs at standard detection limits (>1000ppm or 1%) except GG150-88 which is suitable for Trace Analysis
  • Safe, reliable, Hydrogen generation using proven, membrane technology
  • Automatic water feeding gives a virtually endless supply of gas
  • Replaceable deioniser cartridge and silica gel charge ensures purity and easy maintenance
  • “On demand” generation ensures minimal Hydrogen stored in the system
  • Internal gas leak detection system with automatic shutdown function

General specifications:

  • H2 purity >99.9995% at maximum flow and pressure (GG150-88: >99.9999%)
  • Choice of maximum flow rate according to model
  • Adjustable output pressure from 0 to 100psi g (0 to 6.9 bar g)
  • Water purity requirements: <1µS/cm conductivity and >1MΩ-cm resistance)
  • Output connection: 3mm outside diameter
  • Overall: 380 x 540 x 406mm W x D x H
  • Weight: 29kg

Supplied with inlet ferrule, power lead and instructions. For 110V, 230V 50Hz a.c. single phase supplies.

Note: Suitable deioniser for primary water input into the above generators – see DB120-10.
