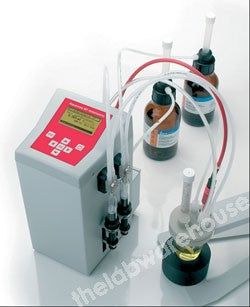

Easy to use analyser to determine water concentrations in a variety of materials.
- Intuitive keypad and guide display
- Backlit, graphics, LCD readout
- Automatic drift monitoring and compensation
- Incorporates 2 x 5ml syringes - one for KF reagent and the other for dosing the titre standard or alternative reagents
- Twin peristaltic pumps for dispensing solvent or emptying the test vessel, respectively
- Pre-programmed titration and standardisation modes, including custom
- Choice of units: ppm, mg/l, %
- Datalogger storage of last 55 results
- Data output via RS232 interface of date/time, reagent factor, drift value, sample ID, result, final volume, titration duration, user ID
- Titration vessel with electrode support, stand and built-in stirrer
- Inputs/outputs: BNC electrode, mini DIN for external accessory keyboard, bidirectional RS232 computer/printer port, RS232C balance connection port
| Measuring ranges | ||
| water | 1µg to 100mg | |
| moisture | 1ppm to 100% | |
| Resolution | ¼0000 of syringe volume (standard syringe 5ml) | |
| Dispensing accuracy (as relative error) | <0.2% for volumes >10% of syringe | |
| Dispensing reproducibility | ±0.1% for volumes >10% of syringe | |
| Contact materials | Borosilicate glass, PTFE and KEL-F | |
| Controls | 7-key membrane keypad with backlit LCD, on/off and stirrer speed keys | |
| Power supply | 90-264V 47/63Hz a.c. or 24V d.c. | |
| Dimensions, H x W x D | mm | 300 x 130 x 160 |
| Weight | kg | 4 |
With 2 x 5ml syringes, burette inlet/outlet tubing, dryer cartridge with molecular sieve titration vessel, 1 x double platinum electrode with BNC connection cable, 2 x pumps and GL45 reservoir bottle caps.
