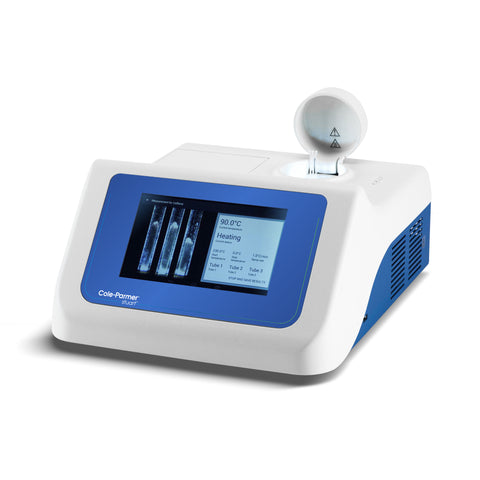

The Bibby Scientific Stuart SMP50 is an innovative, automatic melting point apparatus incorporating a video camera and digital image processor for automatic melt determination (with manual result override) of up to 3 samples simultaneously. The display has a 7”, high definition colour readout which allows real-time viewing of the melt. The video created is automatically saved as an AVI file that can be reviewed later (by accessing the on-board, 300-result memory), or output via USB to the users’ PC or flash drive. The display also incorporates touch screen operation with user prompts in English or French languages. With ‘Plateau facility’ that allows an adjustable ramp rate near the melt temperature. The housing also incorporates a tube cutter to score/cut capillary tubes as required and storage tray. The SMP50 also conforms to Pharmacopeia and GLP requirements.
|Range||Ambient to 400oC (oF and ok selectable)|
|Ramp rate||oC||0.1 to 20 in 0.1 increments|
|Memory||300 results with video (built-in)|
|Cool-down period||350oC to 50oC||12 minutes|
|Heat-up period||50oC to 350oC||6 minutes|
|Display||7 inch colour HD touchscreen|
|Oven control||Closed loop PID|
|Capillary tubes||Up to 3, 2 to 3mm i.d. x 50/100mm long|
|Overall W x D x H||mm||300 x 360 x 164|
Supplied with calibration certificate and 100 melting point tubes. For 230V 50/60Hz single phase supplies.
