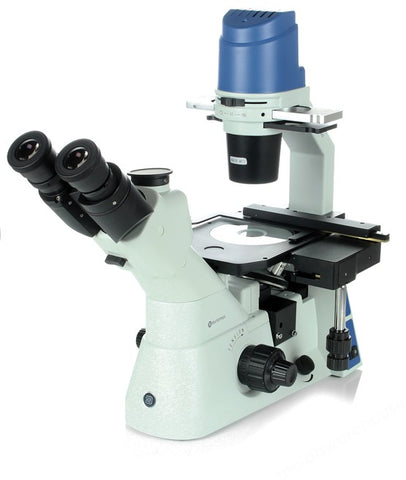

Oxion Inverso Life Science Inverted Microscopes incorporate magnification up to 400X, with 45° inclined trinocular head and swivel height adjustment, phototube, adjustable interpupillary distance (54 to 75mm) and dioptric adjustment, coaxial coarse and fine focussing and 2µm minimum movement. Inverted, quintuple (5-place) nosepiece turret with objectives as indicated. Stable mechanical stage 250 x 230mm with inserts for 35mm diameter cell culture dishes, 76 x 26mm microscope slides, x-y movement (max. 120mm x, 78mm y) and coaxial drop controls. Also features a height adjustable, Abbe condenser (N.A. 0.30) with 2mm working distance and built in 5W LED adjustable illumination with a.c. adapter for 85-240V supplies.
Eyepieces — HW 10X, with 22mm field
Objectives — DIN standard, and Plan Achromat, or Plan Phase Apochromatic, as indicated
Overall 231 x 555 x 488mm W x D x H. Weight 9kg.
Eyepiece/Objectives Codes -
- H = High eyepoint
- W = Widefield
- R = Retractable
- D = DIN Standard
