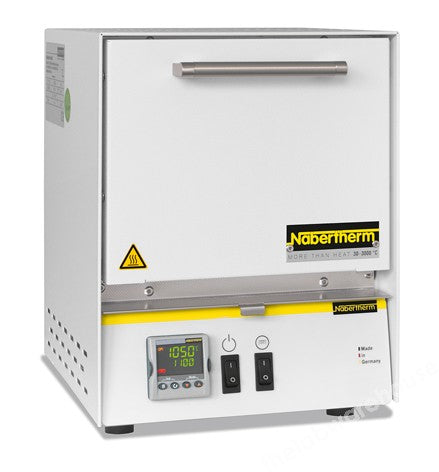

MUFFLE FURNACE NABERTHERM LE1/11/R7 1100ºC 1L 230V 50HZ A.C.

MUFFLE FURNACE NABERTHERM LE1/11/R7 1100ºC 1L 230V 50HZ A.C.

Product Code: FX118-05

£1,362.00

inc. VAT

£1,135.00

ex. VAT

Download Product Information

  • Maximum temperature 1100˚C, (working temperature 1050˚C)
  • Quartz sheathed, tubular elements housed in ceramic fibre plates
  • Multilayered insulation with dual-walled housing giving low external temperatures
  • Stainless steel outer housing
  • Compact, sturdy, stove-enamelled steel housing
  • “Hinge-down” door which can also be used as a work platform
  • Exhaust air outlet at rear of chamber
  • Controller type R7: 1 programme, 1 segment, time and temperature setting
 Model      LE1/11/R7
 Temp. Max./Continuous        oC    1100/1050
 Heating time        mins     10
 Volume litres 1
 Dimensions, internal (external)        height, mm      110 (340)
  width, mm 90 (250)
  length, mm 115 (265)
 Weight kg 10
 Rating, max. kW 1.5















With Silica sheathed, tubular elements. For 230V 50Hz single phase supplies.

Safety Note - please check before ordering that the supply current is suitable for the power rating of the furnace.
