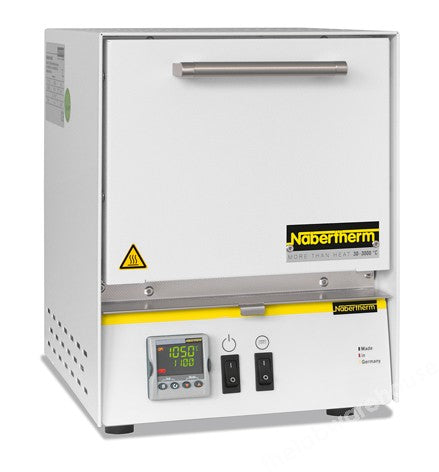

MUFFLE FURNACE NABERTHERM LE14/11/R7 1100ºC 14L 230V 50HZ

MUFFLE FURNACE NABERTHERM LE14/11/R7 1100ºC 14L 230V 50HZ

Product Code: FX118-40

£2,322.00

inc. VAT

£1,935.00

ex. VAT

Download Product Information

  • Maximum temperature 1100˚C, (working temperature 1050˚C)
  • Quartz sheathed, tubular elements housed in ceramic fibre plates
  • Multilayered insulation with dual-walled housing giving low external temperatures
  • Stainless steel outer housing
  • Compact, sturdy, stove-enamelled steel housing
  • “Hinge-down” door which can also be used as a work platform
  • Exhaust air outlet at rear of chamber
  • Controller type R7: 1 programme, 1 segment, time and temperature setting with status alarm, delayed start function and operating time display
 Model      LE14/11/R7
 Temp. Max./Continuous        oC    1100/1050
 Heating time        mins     40
 Volume litres 14
 Dimensions, internal (external)        height, mm      220 (370)
  width, mm 220 (555)
  length, mm 300 (500)
 Weight kg 25
 Rating, max. kW 2.9















With Silica sheathed, tubular elements. For 230V 50Hz single phase supplies.

Safety Note - please check before ordering that the supply current is suitable for the power rating of the furnace.
