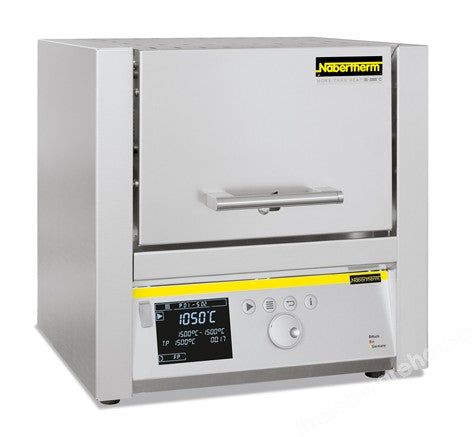

MUFFLE FURNACE NABERTHERM LT15/11/B410 1100ºC 15L 230V 50HZ

MUFFLE FURNACE NABERTHERM LT15/11/B410 1100ºC 15L 230V 50HZ

Product Code: FX120-45

£3,522.00

inc. VAT

£2,935.00

ex. VAT

Download Product Information

  • Maximum temperature 1100˚C
  • Ceramic heating plates with integral heating elements protected against fumes and splashes
  • Durable, vacuum cured, ceramic fibre lining with dual-walled housing giving low external temperatures
  • Stainless steel outer housing
  • Parallel hinge, lift door keeps hot face away from operator
  • Adjustable air inlet integrated into door with exhaust air outlet at rear of chamber
  • Overtemperature safety cut-out
  • B410 controller: 5 programme, 4 segment, time and temperature setting with status alarm, delayed start function, autotune and data output interface
 Model      LT15/11/B410
 Temp. Max./Continuous        oC    1100/1050
 Heating time        mins     90
 Volume litres 15
 Dimensions, internal (external)        height, mm      170 (570)
  width, mm 230 (480)
  length, mm 340 (650)
 Weight kg 55
 Rating, max. kW 3.6















With ceramic heating plates with integral heating elements. For 230V 50Hz single phase supplies.

Safety Note - please check before ordering that the supply current is suitable for the power rating of the furnace.
