Quickfit® jointed glassware from Scilabware is a comprehensive range of laboratory articles with interconnecting joints, enabling simple to complex chemistry set-ups to be easily constructed and allowing a variety of analytical, development or educational tasks to be undertaken. Precision-engineered, ground glass joints with a standard taper and smooth surface ensure complete interchangeability of elements with the same joint size and the highest standards of leak-tightness.
Quickfit® is manufactured in clear, Pyrex® borosilicate glass, with a low coefficient of expansion, excellent chemical and heat resistance. It conforms to the following standards:
ISO 3585, DIN 12217 - Type 3.3 borosilicate glass
ASTM E-438 Type 1 - Class A borosilicate glass
US Pharmacopoeia - Type 1 borosilicate glass
European Pharmacopoeia - Type 1 glass
Further technical details are available on request.
Joint sizes are designated XX/XX, the prefix (XX/-) being the small diameter of the cone or socket and the suffix (-/XX) being the cone or socket height, i.e. size 24/29 has a 24mm diameter at its smallest point and the overall cone or socket height is 29mm.

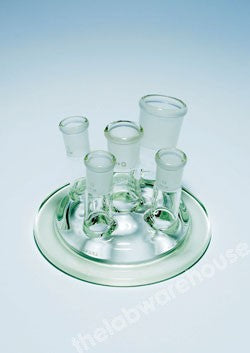

A series of multi-socket lids for use with the Quickfit® range of wide neck reaction flasks and culture vessels. They allow introduction of a great variety of standard Quickfit® equipment for stirring, temperature measurement, aeration and general distillation procedures. The parallel side neck can be fitted with a multiple adapter so that larger dropping funnels can be used. Lids with a single socket neck are of use where simple extraction, refluxing or mixing only are required.
