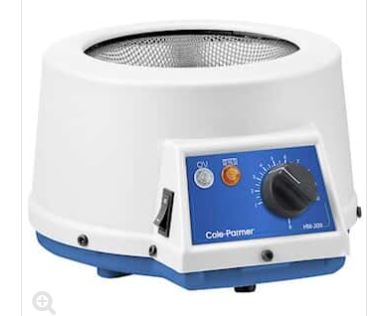

MULTIMANTLE EMV0050/CE CON./EARTH 230V A.C.

MULTIMANTLE EMV0050/CE CON./EARTH 230V A.C.

Product Code: HE250-15

Manufacturers Code: EMV0050/CE

£266.40

inc. VAT

£222.00

ex. VAT

Download Product Information

  • Polypropylene outer case
  • Replaceable flexible heater cartridge
  • Maximum element temperature 450°C
  • Safety earth (ground) screen for operator safety
  • Integral energy regulator control
  • Flexible heater cartridge. The heating elements are suspended in a thermal insulating former making for quick and simple replacement
  • Safety screen. This earth (ground) screen is preformed in stainless steel and fitted above the heating element. It is earthed (grounded) directly to the supply cable
  • Standard fitments. Incorporates the flexible heater cartridge plus a ‘power’ on indicator lamp, earth screen and internal fuse. With one support clamp. Accepts up to 12.7mm diameter rods
 Model      EMV0050/CE
 Capacities, round flasks to BS2734        ml        Pear: 10, 25, 50; Round: 50
 Diameters common 60o filter funnels        mm 50, 75, 100
 Bottom outlet diameters mm  18
 Wattage & circuits        1 x 60
 Switched element   No











With integral, arbitrary scaled, solid state controller. For 230V 50/60Hz a.c. single phase supplies. Without support rod.
