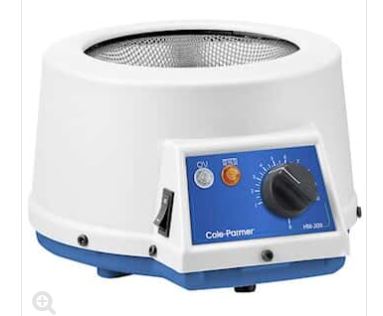

MULTIMANTLE EMV1000/CE CON./EARTH 230V A.C.

MULTIMANTLE EMV1000/CE CON./EARTH 230V A.C.

Product Code: HE250-30

Manufacturers Code: EMV1000/CE

£364.80

inc. VAT

£304.00

ex. VAT

Download Product Information

  • Polypropylene outer case
  • Replaceable flexible heater cartridge
  • Maximum element temperature 450°C
  • Safety earth (ground) screen for operator safety
  • Integral energy regulator control
  • Switch enables upper circuit to be switched off when heating small vessels
  • Flexible heater cartridge. The heating elements are suspended in a thermal insulating former making for quick and simple replacement
  • Safety screen. This earth (ground) screen is preformed in stainless steel and fitted above the heating element. It is earthed (grounded) directly to the supply cable
  • Standard fitments. Incorporates the flexible heater cartridge plus a ‘power’ on indicator lamp, earth screen and internal fuse. With one support clamp. Accepts up to 12.7mm diameter rods
 Model      EMV1000/CE
 Capacities, round flasks to BS2734        ml        Round: 500, 1000
 Diameters common 60o filter funnels        mm 100, 150, 200
 Bottom outlet diameters mm  33
 Wattage & circuits        1 x 100, 1 x 200
 Switched element   Yes











With integral, arbitrary scaled, solid state controller. For 230V 50/60Hz a.c. single phase supplies. Without support rod.
