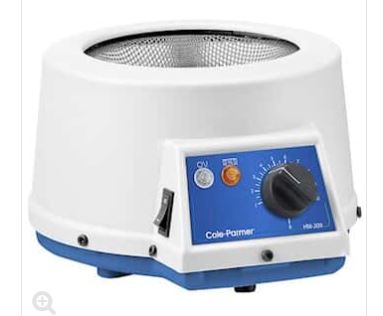

MULTIMANTLE EMV5000/CE CON./EARTH 230V A.C.

MULTIMANTLE EMV5000/CE CON./EARTH 230V A.C.

Product Code: HE250-45

Manufacturers Code: EMV5000/CE

£552.00

inc. VAT

£460.00

ex. VAT

Download Product Information

  • Polypropylene outer case
  • Replaceable flexible heater cartridge
  • Maximum element temperature 450°C
  • Safety earth (ground) screen for operator safety
  • Integral energy regulator control
  • Switch enables upper circuit to be switched off when heating small vessels
  • Flexible heater cartridge. The heating elements are suspended in a thermal insulating former making for quick and simple replacement
  • Safety screen. This earth (ground) screen is preformed in stainless steel and fitted above the heating element. It is earthed (grounded) directly to the supply cable
  • Standard fitments. Incorporates the flexible heater cartridge plus a ‘power’ on indicator lamp, earth screen and internal fuse. With three support clamps. Accept up to 12.7mm diameter rods
 Model      EMV5000/CE
 Capacities, round flasks to BS2734        ml        Round: 2000, 3000, 5000
 Diameters common 60o filter funnels        mm 200, 250, 300
 Bottom outlet diameters mm  68
 Wattage & circuits        1 x 300, 1 x 500
 Switched element   Yes











With integral, arbitrary scaled, solid state controller. For 230V 50/60Hz a.c. single phase supplies. Without support rod.
