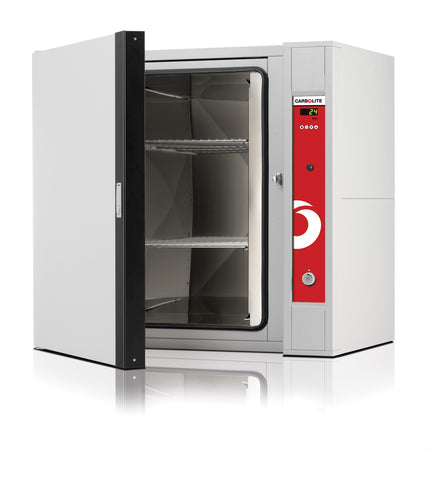

OVEN CARBOLITE PF200 FAN PID 230L 220-240V 50HZ A.C.

OVEN CARBOLITE PF200 FAN PID 230L 220-240V 50HZ A.C.

Product Code: OV195-44

£3,120.00

inc. VAT

£2,600.00

ex. VAT

Download Product Information

Carbolite Peak ovens are sophisticated units offering a choice of options.

General specifications:

  • Maximum temperature 300°C
  • Stainless steel interior
  • Efficient insulation using totally encased, low thermal mass fibre material
  • Chamber ventilation and exhaust vent adjustable from the front control panel
  • Capacities up to 230 litres
  • Natural (PN-) or forced air (PF-) circulation models
  • PID controller incorporating a single ramp to set point facility and process timer
 Model

 PF200
 Capacity, usable
  litres
 230
 Temperature uniformity
 (at 300°C)
 ±°C
 5
 Temperature stability
 (vent closed)
 ±°C
 0.2
 Dimensions,        external
 (H x W x D)           internal
  mm
  mm
 920 x 965 x 670
 750 x 590 x 520
 Weight
  kg
 75
 Shelves (positions)

 2 (15)
 Power
  W
 2700






















With stainless steel interior and nickel-plated, wire shelves as indicated. For 220-240V 50/60Hz single phase supplies.
