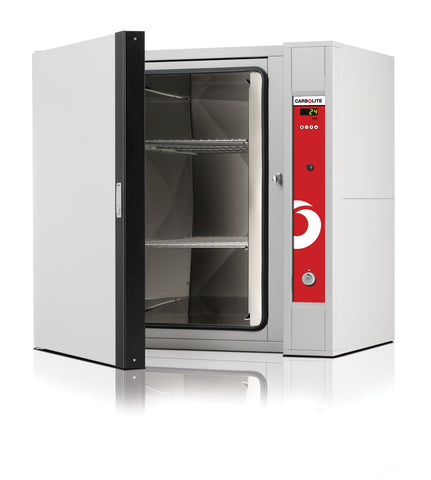

Carbolite Peak ovens are sophisticated units offering a choice of options.
General specifications:
- Maximum temperature 300°C
- Stainless steel interior
- Efficient insulation using totally encased, low thermal mass fibre material
- Chamber ventilation and exhaust vent adjustable from the front control panel
- Capacities up to 230 litres
- Natural (PN-) or forced air (PF-) circulation models
- PID controller incorporating a single ramp to set point facility and process timer
| Model | PF30 | |
| Capacity, usable | litres | 28 |
| Temperature uniformity (at 300°C) | ±°C | 7 |
| Temperature stability (vent closed) | ±°C | 0.5 |
| Dimensions, external (H x W x D) internal | mm mm | 470 x 665 x 470 300 x 292 x 320 |
| Weight | kg | 30 |
| Shelves (positions) | 2 (3) | |
| Power | W | 1000 |
With stainless steel interior and nickel-plated, wire shelves as indicated. For 220-240V 50/60Hz single phase supplies.
