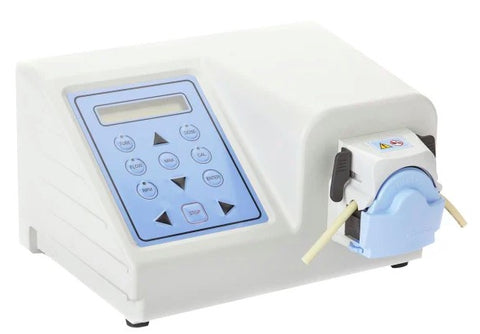

PERISTALTIC PUMP 3000 P EZ 0.8-1310ML/MIN 110 230V 50/60HZ AC

Product Code: PX712-15

£2,298.00

inc. VAT

£1,915.00

ex. VAT

Download Product Information

The Verder® 3000 P EZ is a fully programmable, flexible-use pumps providing highly accurate and repeatable flow rates with quick, easy set-up from on-board display and membrane keypad, or remotely via an analogue input (0 to 10V d.c., 4 to 20mA), potentiometer input (10kohm), or RS232 interface for connection to the user’s PC.

General specifications:

  • Ranges: 0.9 to 1310ml/minute, 10 to 250rpm
  • Accepts 1.6mm wall tubing up to 8.0mm bore
  • Brushless d.c. motor for continuous operation
  • Self-priming
  • Reversible pumping available
  • Single or repeat dose compatibility with user defined interval
  • Accuracy when pumping viscous products can be achieved using the calibration mode
  • Run-back option prevents spillages#
  • Acetal and nylon pumphead with Nylatron rollers

Performance:

 Tube bore,
 mm
 Flow rate,
 ml per minute
 0.8
 1.6
 3.2
 4.8
 6.4
 8.0
  0.9 to 18.8
 2.8 to 70.0
 10.7 to 268.0
 243.3 to 588.0
 37.3 to 938.0
 52.7 to 1310.0
















Overall 291 x 252 x 168mm W x D x H. Weight 4.0kg. For 110, 230V 50/60Hz single phase supplies.
