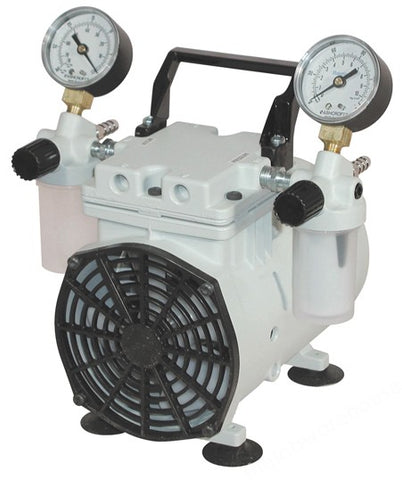

PISTON VACUUM PUMP/COMPRESSOR WELCH 2534C-02 230V 50HZ A.C

PISTON VACUUM PUMP/COMPRESSOR WELCH 2534C-02 230V 50HZ A.C

Product Code: PX245-20

£558.00

inc. VAT

£465.00

ex. VAT

Download Product Information

Gardner Denver Welch Wob-L® series are oil-free (dry), vacuum/pressure piston pumps, ideal for air sampling, pressure or vacuum filtration, water aeration or for use with vacuum ovens or flame photometers. Not suitable for use with organic, basic or acidic vapours and gases.

  • Built for continuous-duty operation
  • All parts in contact with air are aluminium or stainless steel and corrosion-protected from moisture
  • All pumps supplied with thermally protected motor, carrying handle and suction cup feet for stability

Performance data:

 Model

 2534C-02
 Stages

 1
Free air displacement
at 50Hz

 litres per minute

 28
 Ultimate vacuum
 mbar
 93
 Pressure
 bar
 0.5
 Inlet and outlet nozzle
 diameter

 mm

 5
 Overall                      height
                                     width
                                     depth
 mm
 mm
 mm
 254
 224
 206
 Weight
 kg
 5.3

























 Supplied with mains lead. For 230V 50Hz single phase supplies.
