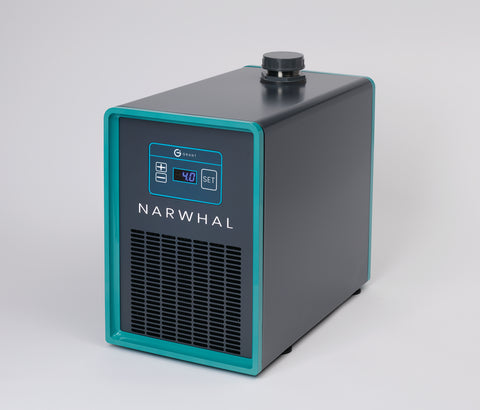

ORCA and NARWHAL recirculating chillers from Grant are stand-alone closed circulators providing powerful, accurately controlled cooling for analytical techniques and instruments where an optimum operating temperature is required.
Features:
- Precise temperature control
- Low coolant consumption (use: Deionised water for range +5 to +40°C, or Deionised water/glycol mixture for –10 to +5°C)
- Settable high temperature warning and low-level alarms
- Over- or under-temperature cut-outs
- Advanced refrigeration automatically adjusts to heat loads, minimising power required
- Flow fail device cuts power if no liquid in system
- 1-999 minute timer
- Digital temperature display
- Noise: 50dB
General specifications:
| Model | ORCA | NARWHAL | |
| Temperature range | °C | -10 to 40 | -15 to 40 |
| Typical cooling power at 20°C 10°C 0°C | W W W | 300 180 80 | 600 500 250 |
| Stability at 20°C (DIN 58966), using water | ±°C | 0.1 | 0.2 |
| Maximum liquid flowrate | litres per minute | 15 | 24 |
| Pump head pressure, maximum | mbar | 450 | 1000 |
| Overall W x D x H | mm | 260 x 450 x 400 | 260 x 450 x 400 |
| Weight | kg | 20 | 22 |
| Inlet and outlet connections | Female ½" BSP | 9.5 diameter | |
| Reservoir capacity | litres | 1.7 | 1.7 |
| Operational ambient temperature range | °C | 5 to 35 | 5 to 35 |
For 230V 50/60Hz single phase supplies.
