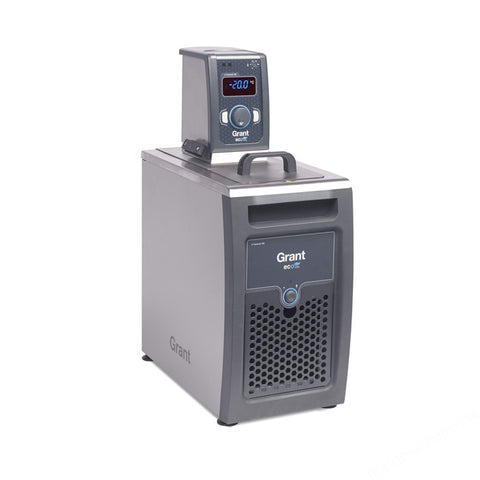

REFRIGERATION UNIT GRANT LT ECOCOOL 100R 230V 50HZ A.C.

REFRIGERATION UNIT GRANT LT ECOCOOL 100R 230V 50HZ A.C.

Product Code: CL120-45

Manufacturers Code: ecocool 100R

£3,598.80

inc. VAT

£2,999.00

ex. VAT

Download Product Information

Grant LT ecocool benchtop refrigeration units have built-in thermostatic controllers, tanks and pumps for external coolant circulation.

  • Choice of model ranges:-
     – -20 to +100°C, -25 to +150°C, -30 to +200°C
     – Tank volumes 5 or 6 litres
  • Active cooling throughout the whole temperature range
  • High power (up to 500W) cooling available if required
  • Controller includes digital display of set/actual temperature, 3 temperature pre-sets, 1
     minute to 99 hour 59 minute timer and high (and low – CL120-70/-85 only) temperature alarm settings
  • “Eco” mode operation provides up to 80% energy saving compared to standard chillers
     with compressor on/off modes
  • High pressure pumping up to 2 bar
  • Adjustable overtemperature cut-out
  • Models LT ecocool 150 and 200 additionally have USB interfaces for remote control via
     the user’s computer using accessory Labwise software and DIN sockets for connection   to external temperature probes

General specifications:

 Model

 LT ecocool 100R
 Temperature range*
 °C
 -20 to +100
 Cooling power* at 20°C
 W
 250
 Stability at 20°C
 ±°C
 0.05
 Liquid flow rate
 litres per
 minute
 17
 Pump head pressure at 1 litre/minute
 mbar
 250
 Calibration points
   2
 Customisable programmes (segments)

 -
 Temperature pre-sets

 3
 Alarms
   High
 Interface port
   -
 Ext. temperature probe socket
   -
 Display
   LED
 Overall D x W x H
 mm
 430 x 240 x 640
 Weight  kg  28
 Inlet and outlet connections

 Super seal, 9.5mm diameter ferrule,
 M16 or BSP
 Reservoir capacity  litres  5




































* Typical, at ambient of 20°C and using water.

Supplied with built-in controller, stainless steel connectors and adapters for super seal, tubing ferrule, M16 or BSP connections. For 230V 50Hz single phase supplies..
