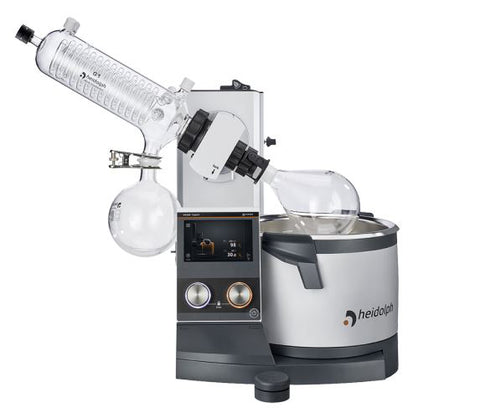

ROTARY EVAPORATOR HEIDOLPH HEI-VAP EXPERT MAN LIFT ANGLE 230V

ROTARY EVAPORATOR HEIDOLPH HEI-VAP EXPERT MAN LIFT ANGLE 230V

Product Code: EV330-93

£4,234.80

inc. VAT

£3,529.00

ex. VAT

Download Product Information

  • Manual lift and angled distillation condenser
  • Touchscreen or dial control of rotation speed and heating bath temperature, with digital display of set and actual values
  • Lock function prevents accidental changing of settings
  • Supplied with high-efficiency heating bath with horizontal positioning adjustment
  • Standby function switches off unit (and raises glassware - electrical lift models)
  • Supplied with USB and microSD interfaces
Speed range 20 to 280rpm
Water bath        20 to 210oC, 4.5 litre capacity
Lifting mechanism       155mm maximum
Evaporator flasks 50 to 5000ml accepted







Each glassware set includes: 1 each 1000ml evaporating and receiving flasks, angled condenser and feed tube.

Overall W x D x H 490 x 395 x 430mm. Weight 26kg. For 230V 50/60Hz single phase supplies.
