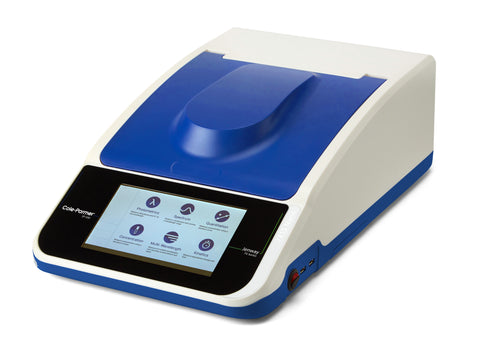

SPECTROPHOTOMETER JENWAY 7415 Nano UV/VISIBLE 100-240V 50/60HZ AC

SPECTROPHOTOMETER JENWAY 7415 Nano UV/VISIBLE 100-240V 50/60HZ AC

Product Code: SJ379-05

Manufacturers Code: 747501

£7,395.22

inc. VAT

£6,162.68

ex. VAT

Download Product Information

The Jenway 74/76 series scanning spectrophotometers are designed for ease-of-use with accuracy, reliability and enhanced connectivity, within a compact format.
  • Model 7415 Nano is a micro-volume instrument specifically for "drop-type samples in nucleic acid or protein analysis
  • Large, high definition colour touchscreen display which allows full scans, quantitation curves and kinetics runs to be viewed easily
  • 10GB onboard memory storage for methods and results
  • Outputs include 2 x USB-A, 1 x USB-B and RJ45 ethernet
 Model      7415 Nano
 Wavelength range        nm     198 to 1000
 Bandwidth          nm 5
 Wavelength accuracy        nm  ±2
 Light source         Press-to-read Xenon
 Repeatability nm ±0.5
 Photometric   absorbance range Absorbance         -0.300 to 2.500A x 1A resolution ±0.01 accuracy (at 1.000)
 Modes nucleic acid  dsDNA, ssDNA, RNA, Oligonucleotides, 260/280, 260/230, Variable ratio
  protein BCA, Bradford, Lowry, Biuret, Direct UV
 Maximum   concentration ng/ul 6000 (dsDNA at 0.2mm path)
 Detection limit ng/ul 2 (dsDNA at 0.5mm path)
 Measurement time secs <6.5
 Minimum sample ul 0.5 at 0.2mm path, 1.0 at 0.5mm path
 Maximum sample size ul 5
 Sample pedestal Quartz and stainless steel
 Outputs   2 x USB-A, 1 x USB-B, 1 x RJ45 ethernet
 Dimensions H x W x D mm 156 x 280 x 500
 Weight kg 9









































Supplied with micro-volume sample measurement pedestal, instructions and universal power supply for 100-240V 50/60Hz single phase supplies.
