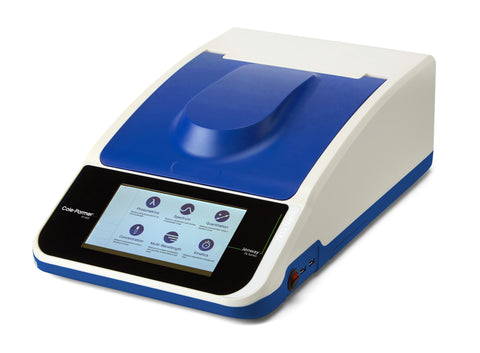

SPECTROPHOTOMETER JENWAY 7615 SPLIT BEAM UV/VIS 100-240V 50/60HZ AC

SPECTROPHOTOMETER JENWAY 7615 SPLIT BEAM UV/VIS 100-240V 50/60HZ AC

Product Code: SJ378-30

Manufacturers Code: 761501

£6,430.20

inc. VAT

£5,358.50

ex. VAT

Download Product Information

The Jenway 74/76 series scanning spectrophotometers are designed for ease-of-use with accuracy, reliability and enhanced connectivity, within a compact format.
  • Large, high definition colour touchscreen display which allows full scans, quantitation curves and kinetics runs to be viewed easily
  • 10GB onboard memory storage for methods and results
  • Outputs include 2 x USB-A, 1 x USB-B and RJ45 ethernet
 Model      7615
 Wavelength range        nm     198 to 1000
 Bandwidth          nm 1.5
 Wavelength accuracy        nm  ±2
 Light source         Pulsed Xenon
 Repeatability nm ±0.5
 Photometric ranges Transmittance         0 to 199.9% x 0.1% resolution ±1% accuracy
  Absorbance -0.300 to 2.500A x 0.001A resolution ±0.01 accuracy (at 1.00)
Concentration modes range  -300 to 9999
  resolution Selectable 1/0.1/0.01/0.001
  calibration Blank and 1 factor/standard
Quantitation modes range -300 to 9999
  resolution  Selectable 1/0.1/0.01/0.001
  calibration Blank and up to 20 standards
Kinetics modes time, secs 2 to 9999
  analysis conc. rate of change, initial and final abs. or % trans.
Scanning modes interval, nm Selectable 1/2/5/10
  analysis ABS, %T, peak and valleys, area under curve
Outputs   2 x USB-A, 1 x USB-B, 1 x RJ45 ethernet
Dimensions H x W x D mm 156 x 280 x 500
 Weight kg 9







































Supplied with 10mm cell holder, instructions and universal power supply for 100-240V 50/60Hz single phase supplies.
