STEEL 5 LITRE TANK AND LID, FOR 230V 50/60HZ A.C.

STEEL 5 LITRE TANK AND LID, FOR 230V 50/60HZ A.C.

Product Code: CL120-70

Manufacturers Code: LT ecocool 150

£3,832.80

inc. VAT

£3,194.00

ex. VAT

Download Product Information

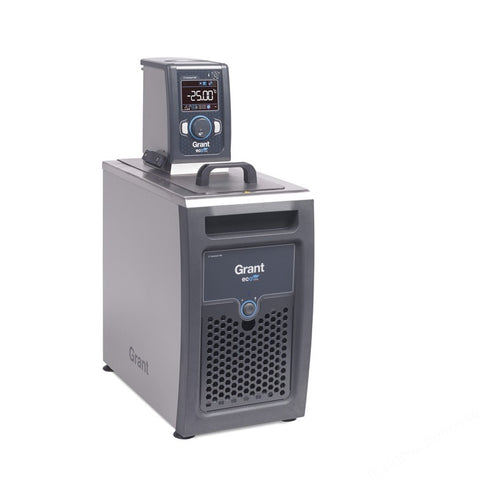

Grant LT ecocool benchtop refrigeration units have built-in thermostatic controllers, tanks and pumps for external coolant circulation.

  • Choice of model ranges:-
     – -20 to +100°C, -25 to +150°C, -30 to +200°C
     – Tank volumes 5 or 6 litres
  • Active cooling throughout the whole temperature range
  • High power (up to 500W) cooling available if required
  • Controller includes digital display of set/actual temperature, 3 temperature pre-sets, 1
     minute to 99 hour 59 minute timer and high (and low – CL120-70/-85 only) temperature alarm settings
  • “Eco” mode operation provides up to 80% energy saving compared to standard chillers
     with compressor on/off modes
  • High pressure pumping up to 2 bar
  • Adjustable overtemperature cut-out
  • Models LT ecocool 150 and 200 additionally have USB interfaces for remote control via
     the user’s computer using accessory Labwise software and DIN sockets for connection   to external temperature probes

General specifications:

 Model

 LT ecocool 150
 Temperature range*
 °C
 -25 to +150
 Cooling power* at 20°C
 W
 350
 Stability at 20°C
 ±°C
 0.02
 Liquid flow rate
 litres per
 minute
 14 to 22 (adjustable)
 Pump head pressure at 1 litre/minute
 mbar
 530
 Calibration points
   5
 Customisable programmes (segments)

 1 (30)
 Temperature pre-sets

 3
 Alarms
   High and low
 Interface port
   USB
 Ext. temperature probe socket
   6-pin mini DIN
 Display
   Colour QVGA TFT
 Overall D x W x H
 mm
 430 x 245 x 640
 Weight  kg  28
 Inlet and outlet connections

 Super seal, 9.5mm diameter ferrule,
 M16 or BSP
 Reservoir capacity  litres  6




































* Typical, at ambient of 20°C and using water.

Supplied with built-in controller, stainless steel connectors and adapters for super seal, tubing ferrule, M16 or BSP connections. For 230V 50Hz single phase supplies..
