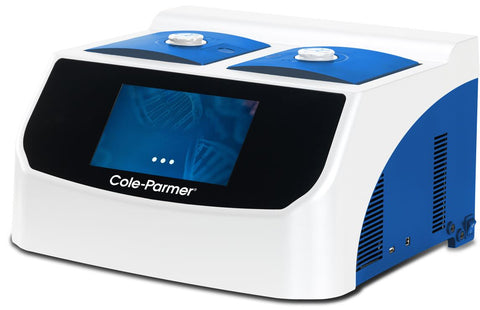

THERMAL CYCLER AC2196 1 x 96-WELL/1 x 384-WELL BLOCKS 100-230V 50/60Hz

Product Code: MW612-30

Manufacturers Code: 93945-20

£8,870.29

inc. VAT

£7,391.91

ex. VAT

Download Product Information

Spex® PCRMax® models are convenient, gradient thermocyclers with numerous applications in molecular biology and diagnostic laboratories.

  • High definition, touchscreen operation with Android-driven interface
  • Automated protocol optimisation with programme wizard
  • Remote operation/monitoring available allowing alarm, time and system health checks via the user's phone
  • USB user login sets all defaults to the individual user's settings
  • Regularly-used default programmes can be created, locked and protected
  • Units for 1, 2 and 4 block combinations with 96-well or 384-well configuration
  • Gradients run across 12 or 16 columns on 96-well or 384-well plates respectively, using 8 individual Peltier heat sources
  • Heated lid with temperature and pressure adjustment

All models include a USB output to transfer programmes and temperature logs between instruments or the user’s computer and act as a user login port key using any accessory USB drive.

General specifications:

 Model

  AC2196
 Block Format   1 x 96-well and 1 x 384-well
 Temperature range, block
 ºC
 10 to 100
  Block uniformity at 55ºC  ±ºC   <0.3
 Gradient Minimum/Maximum  ºC   1/29
 Gradient accuracy  ±ºC  0.25
 Maximum number of
 programmes

 1000
 Selectable heated lid
 temperature*
 ºC
 35 to 115 or off
 Auto restart on power failure?

 yes
 Peltier elements per block

 8
 Data/network interface

 USB
 Overall D x W x H
 mm
 470 x 535 x 335
 Weight
 kg
 30








































* The heated lid will only come on if block temperature is set above 35°C.

For 100 to 230V 50/60Hz single phase supplies.
