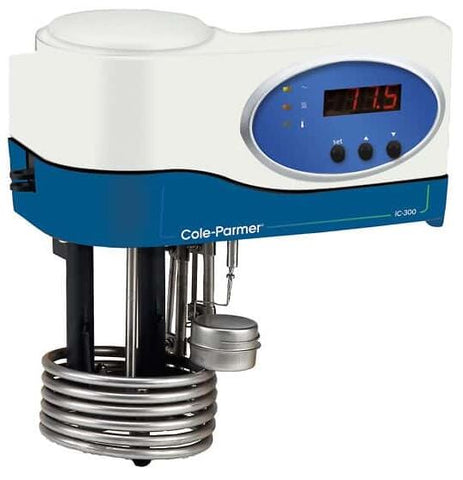

THERMOREGULATOR IC-300-20DDC (TU-20D) MAX. 200ºC 230V 50/60HZ A.C.

THERMOREGULATOR IC-300-20DDC (TU-20D) MAX. 200ºC 230V 50/60HZ A.C.

Product Code: BJ770-25

Manufacturers Code: 01262-15 (FTU20DDC)

£1,694.59

inc. VAT

£1,412.16

ex. VAT

Download Product Information

Cole-Parmer (formerly Techne Tempette® and Tempunit®) thermostatic controllers are

 “Clip on” temperature controllers with mounting clamp suitable for vessels with wall thickness up to 25mm. When the controller is to be used with Techne bath tanks the clamp is unnecessary as a bridge plate is provided. All models incorporate a splash-proof case, coiled immersion heater and pressure circulating pump (except IC300-20HDC). In addition they are fitted with an adjustable overtemperature cut-out and conform to international standards for radio frequency interference. All models have a low liquid level cut-out. IC300-models have a built-in RS232 interface which allows them to communicate with the users’ personal computer if required using Thermsoft PC control freeware available from the Cole-Parmer website.

Techne thermoregulators  are designed and manufactured under BS-EN ISO 9001. They conform with all important international RF interference and electrical safety regulations, including the EMC and Low Voltage Directives, and carry the CE-mark.

Model IC-300-20DDC features:

  • High precision, digital controller with wide temperature range and fine temperature adjustment
  • PID controller with bright, LED readout
  • Built-in circulating pressure pump with external connections (suction not available)
  • Adjustable overtemperature cut-out
  • Fitted with bi-directional RS232 interface for programming by a personal computer
  • Low liquid protection by float switch

General specifications:

 Model


 IC-300-10DDC



IC-300-20DDC

 IC-300-20HDC
 Temperature range*
 °C
 -40 to 120
 -40 to 200
 -40 to 250
 Temperature selection

 Digital
 Digital
 Digital
 Stability using water at 40°C
 ±°C
 0.01
 0.005
 0.005
 Control method

 PID
 PID
 PID
 Setting resolution
 °C
 0.1
 0.1
 0.1
 Display

 4 digit LED
 4 digit LED
 4 digit LED
 Display resolution   °C  0.1  0.1   0.1
 Temperature sensor

 PRT
 PRT
 PRT
 Heater power, 220-240V
 kW
 1.0
 1.8
 1.8
 Pump (water)
             maximum pressure
                     maximum flow

 mbar
 l/min.

 145
 10

 145
 10

 -
 -
 Overall W x D x H
 excluding clamp
 mm
 237 x 124 x 260
 237 x 124 x 260
 237 x 124 x 260
 Extension below base
 mm
 145
 145
 145




































 *A lid or layer of polypropylene spheres must be used when operating between 60°C and 100°C, and is recommended for use below room temperature. Above 100°C, a lid must always be used. Accessory cooling is required for operation near or below ambient temperature.

Supplied with both UK and European Schuko plugged mains supply leads. For 230V 50/60Hz single phase supplies.
