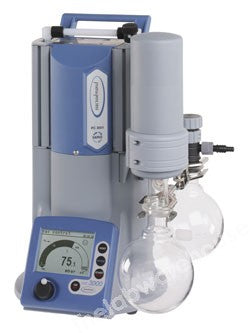

VACUUM PUMPING UNIT VARIO PC3001 2.0m3 2mBAR 230V 50/60HZ

VACUUM PUMPING UNIT VARIO PC3001 2.0m3 2mBAR 230V 50/60HZ

Product Code: PX447-20

£4,890.00

inc. VAT

£4,075.00

ex. VAT

Download Product Information

Compact, high performance pumping units from Vacuubrand, comprising a chemistry diaphragm vacuum pump, adaptive sensor and digital controller to maximise solvent recovery, reduce process times and offer fine control of complex evaporative applications.

General specifications:

  • Automatically seeks optimum vacuum for process parameters (Distillation, drying etc.)
  • Virtually 100% solvent recovery
  • Bidirectional RS232 interface allows automatic process setting and control via the user's PC, if required
  • Fuzzy logic and PID control offers easy, efficient and safe processing
  • Built-in aeration valve provides fine, precise vacuum control
  • Incorporate high performance diaphragm pump offering higher pumping speed, lower ultimate vacuum, low vibration and longer diaphragm life
  • All parts in contact with gases and vapours are made of highly resistant plastics

Performance data:

 Model

 PC3001 Vario
 Pump

 MD1C
 Flow rate
 m3 per hour
 2.0
 Ultimate vacuum
 mbar
 2
 Inlet and outlet nozzle
 diameter

 mm

 10
 Overall                      height
                                     width
                                     depth
 mm
 mm
 mm
 400
 300
 306
 Weight
 kg
 7.7























With gas/vapour path of PTFE and similar materials, vacuum sensor and controller with gauge head, inlet and outlet catchpots and exhaust separator. For 230V 50/60Hz single phase supplies.
