WATER STILL WS-200A-8 240V 50/60HZ A.C.

WATER STILL WS-200A-8 240V 50/60HZ A.C.

Product Code: WL102-15

Manufacturers Code: 99294-25 (formerly Stuart Aquatron A8000)

£6,126.66

inc. VAT

£5,105.55

ex. VAT

Download Product Information

Cole-Parmer WS-200A-8
  • Complies with EN61010
  • Operate from virtually any water supply
  • Integral filter and flow control system allows use with low quality or low pressure water supply
  • Accessory filter unit available for handling heavily contaminated supply water
  • Accessory deioniser available to remove inorganics from the water supply
  • Can be linked to most types of deioniser or reverse osmosis units

Construction

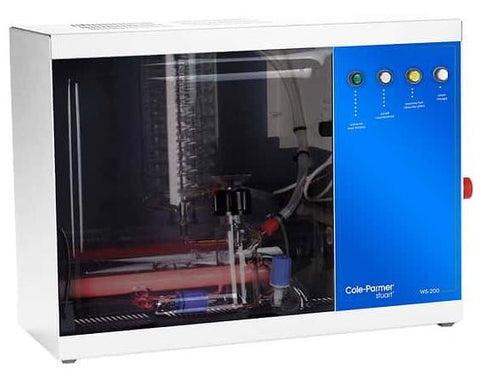

Cole-Parmer stills incorporate a double coil vertical condenser and boiler system. This combined with a silica sheathed heating element provides an exceptionally high quality output ready for immediate use. Raw water carry over is prevented by an extra long baffled tube between the boiler and condenser. Screwthread connectors on the internal glassware enable safe easy connection of flexible tubing. Cleaning of the boiler can be carried out without dismantling the glassware. The still is contained in a robust metal cabinet with tinted plastic front screen and simple illuminated push-button switches. The cabinet roof and front screen are easily removed for access to all glassware and components. Can be wall or bench mounted.

Safety Features

A flow control safety cut-out prevents the still from boiling dry if the water flow is interrupted. It is not dependent on water pressure which means the still can be operated from header tanks or other low pressure sources. The flow control safety cut-out is backed by a resettable thermostat to ensure protection against coolant or water feed failure. A built-in filter which is accessible from outside the cabinet removes particulate matter from the input water before it enters the still. All stills are supplied with a distillate level control system which fits to any collection reservoir. This automatically switches off the still when the reservoir is filled and back on again when the distillate level falls.

 Model      WS-200A-8
 Output        litres/hour*     8 single distilled
 Quality of distillate:
    pH   5.0 - 6.5
   Conductivity         µS/cm 1.0 - 2.0
   Resistivity megohm-cm      0.5 - 1.0
   Pyrogen free   A pyrogen free distillate is possible
 Temperature ºC  25 to 35
 Services required:
   Cold water input   2 litres/minute
   Supply pressure   0.3 x 105Nm-2(5Ib/in²) minimum
   Electricity supply   240V 50/60Hz single phase 30A fused
 Cabinet dimensions W x D x H, mm        550 x 240 x 410



















*Maximum outputs stated will only be achieved at the stated voltage. 220V versions are available on request.

Care is needed to obtain Pyrogen-free water and the distillate must be tested before use. pH, conductivity and resistivity are similarly affected by temperature and the presence of absorbed carbon dioxide. The basis of the tests is 20°C on distilled water free of carbon dioxide.
